143.3KWh\ 200.7KWh All-in-One High-Voltage Lithium Battery Cabinet Designed for Industrial & Commercial Applications

EverExceed's energy storage system adopts a first-class brand of lithium iron phosphate (LiFePO4) batteries, with high specific energy, long cycle life, fast charging and discharging, safe and non-polluting, etc., which are widely used in photovoltaic power generation, peak shaving and valley filling, inverter speed control, emergency back-up power supply and other energy storage fields. For customers to solve the problem of grid instability, difficult to use electricity at the same time, for many customers to bring considerable economic benefits, saving a huge amount of electricity expenditure every year. The energy storage battery adopts modular composition, the battery module consists of a single cell, multiple battery modules, plus the high-voltage main control box, is a high-voltage battery pack.


  • brand:

    EverExceed
  • Model:

    ES716-100/ ES716-280
  • Rated voltage(V):

    716.8V
  • Rated capacity(Ah):

    100Ah/ 280Ah
  • Certificates:

    UN 38.3; CE
  • OEM/ODM Service:

    Yes, customized service available
  • Usage:

    Commercial & Industrial
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ

143.3kWh\ 200.7kWh All-in-One High-Voltage Lithium Battery Cabinet Designed for Industrial & Commercial Applications




Seven-layer safety protection
Overcharge/over-discharge protection, short circuit protection, temperature monitoring, pressure relief valve design, flame-retardant housing, explosion-proof circuit, full life cycle traceability system


Fault warning mechanism
The LCD display shows the battery health status (SOH) and fault code in real time, and supports APP remote alarm and maintenance suggestions

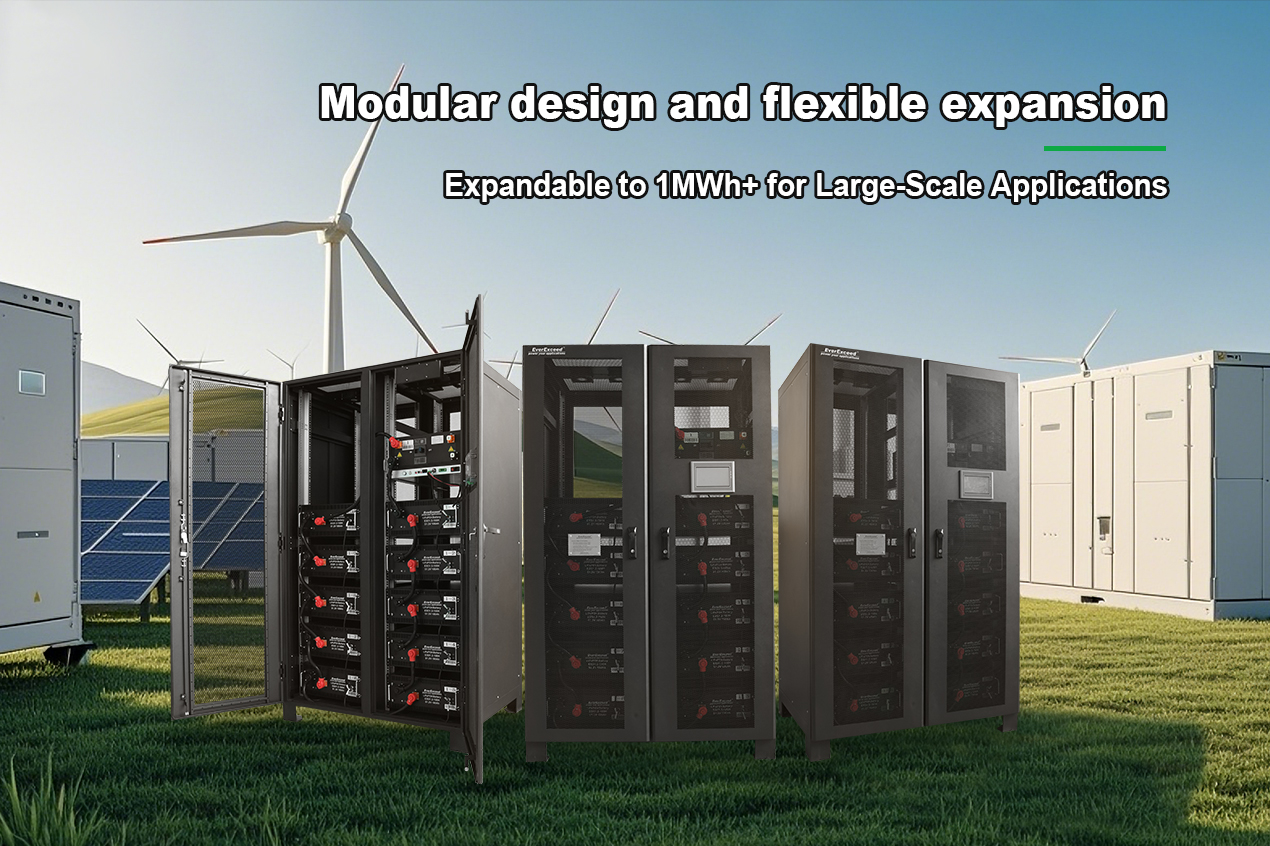

Modular design and flexible expansion
Supports multiple battery packs in parallel, and the capacity can be expanded to 1MWh+, which is suitable for large-scale application needs such as industrial and commercial energy storage power stations and distributed energy systems



Basic Specification
Model ES716-200 ES716-280
Nominal Voltage 716.8V 716.8V
Nominal Capacity 200Ah 280Ah
Energy 143.3KWh 200.7KWh
Charging
Maximum Charging Voltage 806.4V
Maximum Charging Current 200A
Discharging
Voltage Range 627.2V~806.4V
Maximum Continuous Discharging Current 200A
Cut-off Voltage 627.2V~649.6V
Battery Module
Nominal Voltage 51.2V 51.2V
Nominal Capacity 100Ah 280Ah
Quantity 14
Others
Design Life 15 years
Cycle Life 6000Cycle
Cooling Mode Fan + Air Conditioner
Fire Protection Battery module-level and Cabinet-level
Protection Over temperature, Over current, Short circuit, Over charge/discharge, etc.
Communication Interface CAN, RS485, Dry contacts
Temperature Charging: 0~45°C, Discharging: -20°C~60°C
Dimension (W*D*H) 1300*950*2150mm 1300*950*2150mm
Weight 1500±100KG 2000±100KG








If you need to download files, you need to register as our member first ! log in / registered

  • ES716-280 Lithium Battery Energy Storage System V 1.0 20240417.pdf


What is the difference in charging time?
Faster charging times are beneficial if you need backup power to be restored quickly. EverExceed UPS lithium battery fully meets the needs of use.

How do the lifespan and cycle life compare?
These factors will impact the long-term maintenance and replacement costs.

What are the differences in physical size and weight?
Understand the dimensions and weight of each UPS system to ensure it can be accommodated in your available space.    Consider if you need a compact and lightweight solution or if you have ample room for a larger unit.

What are the safety considerations?
Inquire about the safety mechanisms and protections incorporated into each UPS system to prevent issues such as overcharging, short circuits and thermal events.    This is crucial for the reliable and secure operation of the UPS.

How do your equipment requirements align with each UPS?
Ensure that the UPS type is compatible with the power requirements, voltage compatibility, and interfaces of your existing equipment.

What type of support is needed for each battery technology?
Understand the level of technical support and maintenance services offered for each battery type and ensure that you can obtain reliable support throughout the lifespan of the UPS.
