 |7.68kWh /10kWh Rechargeable LiFePO4 Battery for Solar Energy Storage Systems

Solar Energy Battery
Solar Energy Battery Solar Energy Battery Solar Energy Battery Solar Energy Battery Solar Energy Battery

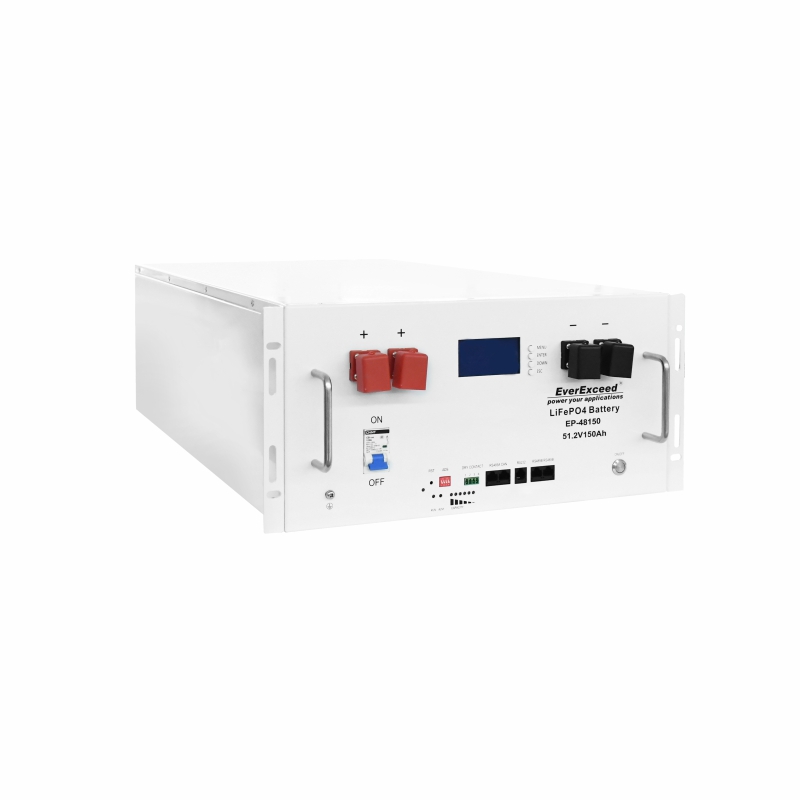

7.68kWh /10kWh Rechargeable LiFePO4 Battery for Solar Energy Storage Systems

EverExceed solar LiFePO4 battery system is specially optimized for PV application, mainly used for the energy store battery of Photovoltaic system; its advance intelligent lithium battery management technology to ensure the intelligent automatic management. With "Energy transfer" balanced patented technology, EverExceed lithium iron phosphate provide high efficiency balanced and prolong system operate life. Based on its own technical features as high capacity, high voltage and free of pollution, the lithium iron battery is widely concerned by people with a rapid development stance. It will be the first choice for the high requirement energy store battery solution.



  • brand:

    EverExceed

  • Model:

    EP-48150/ EP-48200

  • Rated voltage(V):

    48V/ 51.2V

  • Rated capacity(Ah):

    150Ah/ 200Ah

  • Certificates:

    UN 38.3; UL1642; IEC62133

  • OEM/ODM Service:

    Yes, customized

  • Usage:

    Solar energy storage; wind energy storage
inquiry now
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download

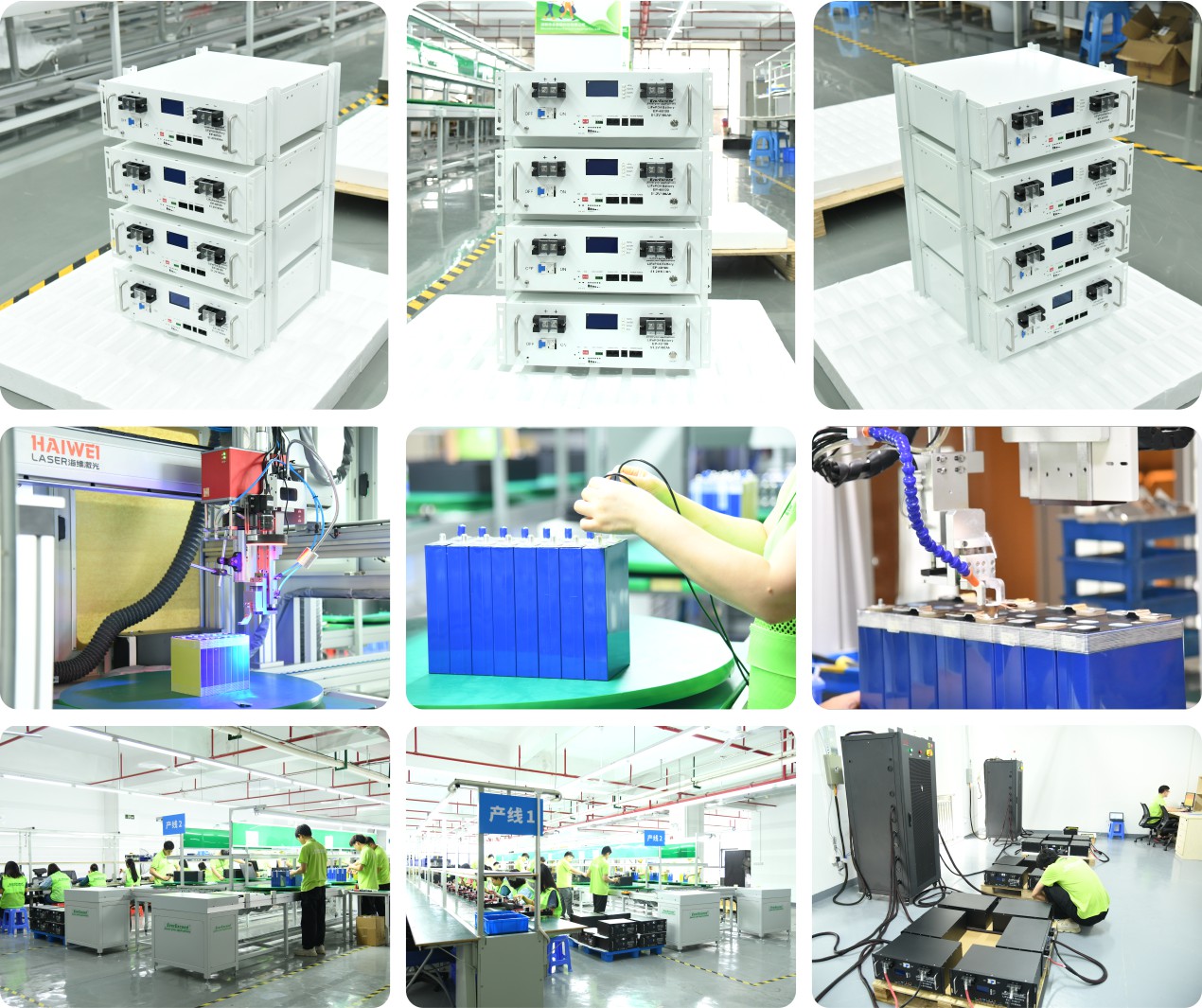

  • Factory
  • Video
  • FAQ

7.68kWh /10kWh Rechargeable LiFePO4 Battery for Solar Energy Storage Systems




Grade A LiFePO4 cells, 6000+ cycles, 15-year lifespan. Built-in fire extinguisher for extra safety. Certified and eco-friendly.


Smart BMS with full protection. Supports RS232, RS485, CAN. Works with most inverter brands.


Compact 19-inch rack or stackable design. Modular and easy to install. Supports up to 15 units in parallel.


Applications

>Solar energy storage / Wind energy storage;



Nominal Characteristics
Battery Model EP-48150 EP-48200
Nominal Voltage 48V 51.2V 48V 51.2V
Nominal Capacity 150 Ah 150 Ah 200Ah 200Ah
Nominal Energy 7200 Wh 7680 Wh 9600 Wh 10240 Wh
Electrical Characteristics
Recommended Charging Voltage 54 ± 0.5 V 54 ± 0.5 V 54 ± 0.5 V 57.6 ± 0.5 V
Recommended Charging Current 45A 45A 60 A 60 A
Maximum Discharging Current 100 A 100 A 100 A 100 A
Operating Conditions
Cycle Life ≥6000 Cycles@80% DOD@25℃
Round-trip Efficiency ≥98%
Operating Charge Temperature 0℃ to +50℃
Operating Discharge Temperature -20℃ to +60℃
Storage Temperature -20℃ to +60℃
Mechanical Characteristics
Length x Width x Height 483 x 500 x 222 mm 483 x 680 x 225 mm
Weight 59.5 Kg 62.5 Kg 79 Kg 84 Kg
Terminal M6
IP Rating IP20







If you need to download files, you need to register as our member first ! log in / registered

  • EP-48200 (16S) V2.3 20250328.pdf
