From our long experience of providing battery solutions to our customers and partners, we have seen that there are some basic questions that are always asked. Here we are sharing some of the common questions and their answers regarding the batteries for your convenience.

How long will it take before my battery is discharged?

This depends on its capacity and the amount of power consumed by the connected equipment. As a rule, the faster a battery is discharged, the less power it supplies. This also works the other way around: The longer it takes before a battery discharges, the more energy you can get from it. A 100 Ah lead-acid battery supplies a current of 5 amps for 20 hours, during which time the voltage does not drop below 10.5 volt. This amounts to 100 Ah. If a load of 100 amps is connected to the same battery, the battery will be able to power it for only 45 minutes. After this time the battery voltage will fall to 10.5 volt and the battery will be empty, having supplied no more than 75 Ah. In contradiction to the lead-acid batteries, the capacity of Lithium Ion batteries will not be affected by the load connected. A Li-ion battery will always supply 100 % capacity, independent of the connected load.

How long will my battery last?

The lifespan of a battery is related to how often and to what extent it is discharged. Proper charging with the right charger is also crucial. At a normal use for holidays and weekends, a lifespan of between five and seven years is quite common for Gel and AGM batteries. When batteries are frequently discharged you will need to adjust the capacity. There is also an option to use 2 volt cells. A lifespan of 15 years is not exceptional for this type of battery as long as they have the right capacity and are properly charged. Lithium Ion batteries are top of the bill. You can discharge and recharge them super-fast and they last up to three times as many cycles than other types of batteries.

What is series connection and parallel connection?

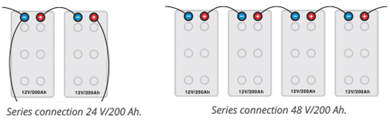

Series connection

A series connection is used to increase voltage, while keeping capacity at the same level. Two serially connected 12 V/120 Ah batteries make a combined battery set of 24 V/120 Ah. In a series connection, the positive pole of one battery is connected to the negative pole of the other, with the poles that remain at the ends being connected to the system. Batteries with different capacities should never be linked in series.

Parallel connection

Parallel connection is used when you need to increase your capacity. The positive leads are connected together, as are the negative leads. The cabling from the battery to the system should be: Positive from battery 1 and negative from battery 2 (or the last in the parallel connection).

Series/parallel connection

If you need a 24 V battery set with a higher capacity, you can combine series and parallel connections. The cables from the battery to the system must be crossed: Positive from battery 1 and negative from battery 2 (or the last in the parallel connection).
