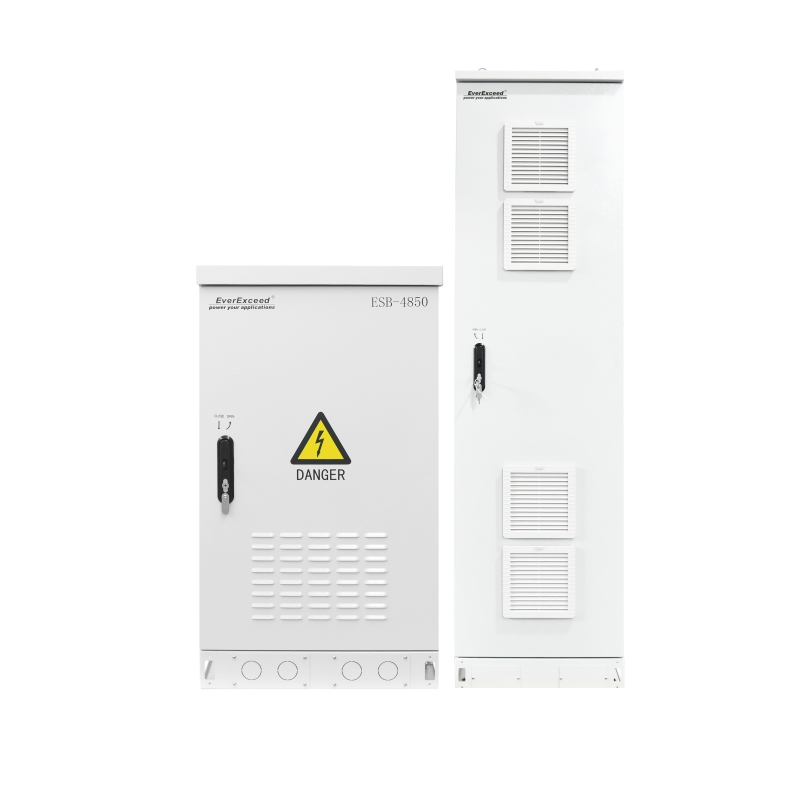

Telecom lithium battery

Harnessing Renewable Energy for Unstoppable Telecom Networks

Reliable on-site power sources are necessary for the continuous operation of telecommunication systems. Cellular towers and repeaters require constant power to ensure network stability, and maintaining and refueling a generator is expensive, inefficient, and time-consuming. So, the ESB series solar power telecom base station can provide a stable -48VDC power supply to the site, avoiding power outages and maintenance.
  • brand:

    EverExceed
  • Nominal Battery Voltage:

    48VDC
  • Rectifier:

    48V50A, max support 20pcs module
  • Solar MPPT:

    48V50A, max support 20 pcs module
  • Efficiency:

    ≥96%
  • IP Rating:

    up to IP65
  • Cooling:

    Fan or aircondition
  • Monitor System:

    Customized multi site Internet centralized monitoring
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ







Safer

Smarter

Simpler

● Reliable, resulting in improved uptime and lower maintenance costs;

● Enhanced support with a dedicated team of experts to assist;

● Increased intelligence with 24x7 remote and on-site monitoring, providing real-time visibility and immediate detection of anomalies;

● Smart lithium, lead-acid and lithium batteries can be used together in power systems, reducing CAPEX;


 Simple design, factory pre-installed to minimize installation costs and time;

 Minimize expensive energy consumption;
● Module design, minimize initial investment, and flexible expansion;


Benefit


Compatible with multiple battery types;

Built-in rectifier with up to 96% conversion efficiency;

Advanced MPPT technology with a conversion efficiency of up to 97%;

Complete protection functions ensure stable operation of the system;

Reliable common positive electrode grounding provides stable -48VDC power supply;



Plug and play, user-friendly operation;

IP55 protection level, outdoor installation;

Highly customized, can be designed according to technical requirements.

Optional 4G remote monitoring, APP/Website monitoring 24/7 uninterrupted power supply;

Excellent heat dissipation method, forced cooling by fan, and insulation cotton to prevent heat radiation;

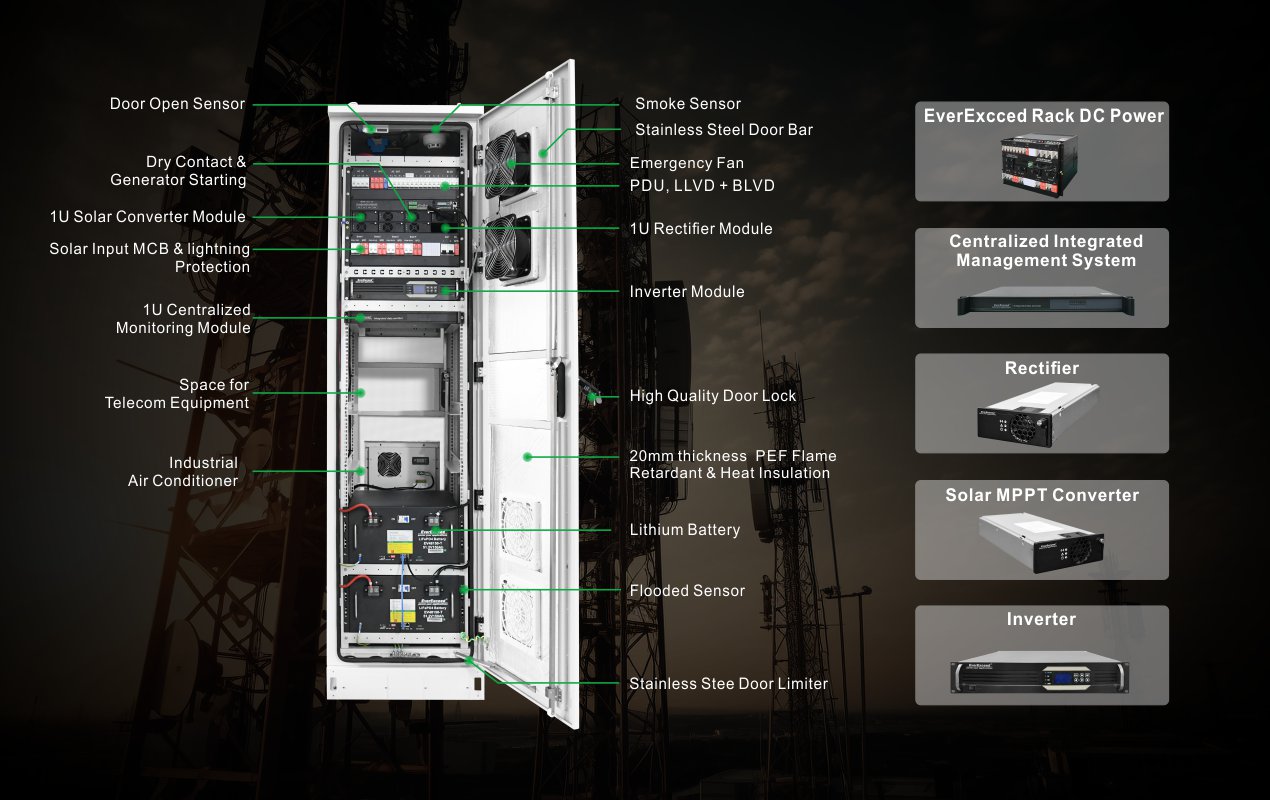

The structures



Work Mode


 Real-Time Monitoring

1. Remote Diagnostics;2. Proactive Maintenance;3. Cost & Efficiency Optimization



All-Scenario Hybrid Power Solutions








MPPT Module ECM48-50V2
MPPT input voltage range 100~400VDC(derate@100-200VDC input)
Max input current 19A
Max PV array power 3000W
Nominal output voltage 48VDC
Adiustable range of output voltage 42~58VDC
Rated output current 55A @54.5VDC
Maximum output current limitation 57A
Output regulation ±0.5%
Load sharing (min/max) ±0.5%
Efficiency ≥96%
Operating temperature range 40 to +75
Max number of parallel units 20pcs
Rectifier Module ERC48-50V2
Input voltage range 90~300VAC(derate@90~176VAC)
Input frequency 45Hz~66Hz
Peak eficiency 96%
Power factor 0.99 @100%load
Rated power 3000W
Nominal output voltage 48VDC
Adiustable range of output voltage 42~58VDC
Rated output current 56.1A @53.5VDC
Maximum output current limitation 62.5A
Load sharing (min/max) ±0.5%
Max number of parallel units 20pcs
Distribution(customized)
Breaker AC input MCB, Phostvoltaic input MCB, DC output MCB (LLVD+BLVD), Battery MCB
Surge protection AC SPD, DC SPD, Photovoltaic SPD
Monitor Module
Monitoring
Can monitor and control: rectifier module,
MPPT module and distribution parameters
Signal input
2-way analog signal input (Battery and environment temperature);
2-way dry contact input
Signal output 4-way dry contact output
Communication port RS485/SNMP
Event log Up to 1,000 historical alarm records
General Data
External proteciton IP20 (Up to IP65)
Humidity <95%
Operating temperature 10 to +45
Storage temperature 25 to +70 (excluding batteries)
Altitude 2000m Max without derating
Cooling Fan cooling (air-condition optional)
Cabinet color RAL7035
Dimensions Varying according to ratings and options
Optional
Inverter 1-6kVA, 48VDC/220VAC
Battery Lithium battery,  Sealed Lead Acid AGM or GEL
Dynamic environmental monitoring
monitoring all parameters in cabinet (including battery, aricondition, inverter, rectifier, MPPTdistribution,and environment sensor);
Centralized monitoring of multiple sites
















If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed ESB Series Telecom Solar Power System Solutions_ESB48V200A V1.0 202401107.pdf

1. What is a Hybrid Telecom Power System?

A Hybrid Telecom Power System is an advanced power solution that integrates multiple energy sources—such assolar power, grid electricity, diesel generators, and battery storage—to provide reliable and cost-effective power for telecom sites. It intelligently manages power distribution tominimize fuel consumption, reduce operational costs, and ensure continuous telecom operations.

2. What are the key advantages of a hybrid power system?

  • Cost Reduction:Optimizes power usage to lower electricity and fuel costs.
  • Energy Efficiency:Uses solar and batteries to reduce reliance on diesel generators.
  • Uninterrupted Power Supply:Ensures continuous operation with intelligent energy switching.
  • Remote Monitoring:Allows real-time tracking and predictive maintenance.
  • Eco-Friendly Solution:Reduces carbon footprint by utilizing renewable energy.

3. How does the hybrid system switch between different power sources?

The system is equipped with anintelligent power management unitthat automatically prioritizes the most efficient power source. It first usessolar energywhen available, then switches togrid power or battery storage, and only activatesdiesel generatorswhen necessary, reducing fuel dependency.

4. Is this system suitable for off-grid or unreliable grid locations?

Yes. TheHybrid Telecom Power Systemis specifically designed foroff-grid and weak-grid telecom sites. It can operate independently usingsolar panels and battery storage, ensuring reliable power without depending on an unstable electrical grid.

5. How does the system help reduce fuel consumption and operational costs?

  • Maximizes solar energy usageto decrease generator runtime.
  • Advanced battery storageallows extended operation without fuel consumption.
  • Smart load managementoptimizes energy distribution to prevent waste.
  • Remote monitoring and controlreduce the need for on-site maintenance visits
