SVR Series Single Phase AVR

The SVR series single-phase high-precision automatic AC voltage stabilizer is composed of a contact auto-voltage regulator, a servo motor, an automatic control circuit, etc. When the grid voltage is unstable or the load changes, the automatic sampling control circuit sends a signal to drive the servo motor, and adjust the position of the carbon brush of the auto-voltage regulator to adjust the output voltage to the rated value and reach a stable state.

  • brand:

    EverExceed
  • Model:

    SVR
  • Rated frequency:

    50Hz / 60Hz
  • Efficiency:

    Up to 99%(AC-AC)
  • Applications:

    Office equipment, test equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems, etc.
  • Certificate:

    IEC 62321 /EN / EPA
  • Rated capacity:

    3KVA-30KVA
  • Output Voltage:

    110/120/127/220/230/240VAC ± 2%
  • Input Voltage:

    110/120/127/220/230/240VAC ± 15%
  • Features
  • TECHNICAL DATA

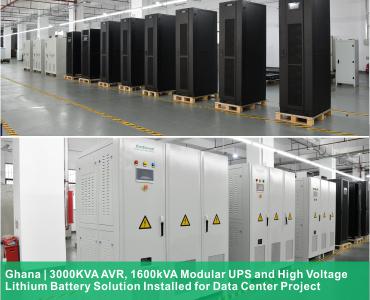

  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ


Technical features:











High reliability

High stability
High safety
Wide input voltage range, compatble with different utilities;
Stable performance to  protect precise and critical equipments;

Prevent  the risks of power-related accidents during overloadsand short circuits;










Flexible customization
Alarm system
Friendly color LCD display
Flexible selection of manual and automatic bypass; customized service is also available;

Fault warning display and alarm;

Outpout voltage and stabilizing accuracy can be adjusted;






Product Details:

Comprehensive Protection:




Application:


Office equipment, test equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems, etc.




Specification SVR-3KVA SVR-5KVA SVR-10KVA SVR-15KVA SVR-20KVA SVR-30KVA
Input Phase Single phase
Voltage  176V-264V±20%
Frequency 50Hz / 60Hz
Output Voltage accuracy 220V±2%
Frequency 50Hz / 60Hz
Protection Low Volt. 185V±5V
Over Volt. 246V±5V
Protective function
Overload, overvoltage, under-voltage, over-temperature,
phase loss, and short circuit protection
Efficiency AC-AC ≥ 99%
Acoustic Noise Level ≤50dB
Environmental Temperature  -10℃~45℃ Degree
Humidity 15% to 90%
Parameter Information Protection degree   standard IP21(outdoor Customizable IP rating)
Reaction speed < 20ms (SCR type)
Regulation speed 30ms (SCR type)
Insulation grade E Grade
Insulation resistance Insulation resistance to ground > 5MΩ
Insulation strength Sinusoidal AC voltage 2500V/1min without flashover or breakdown
Output waveform No output waveform deformation or harmonic increment
Instantaneous overload capacity 2 times rated current
Display mode LCD digital display
Working mode Long-term continuous running
Cooling mode Temperature control forced air cooling
Install
No severe vibration or turbulence; no gas, vapor, chemically deposited dust, dirt and other
explosive and corrosive media that seriously affect the insulation of the voltage stabilizer;
Packaging Shipping Wt.(KG) 29KG 40KG 63KG 85KG 108KG 135KG
Dimensions
(D*W*H mm)
200*300*230 250*300*280 480*360*580 480*360*580 480*360*580 550*420*700







If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed SVR Series Single phase AVR.pdf
