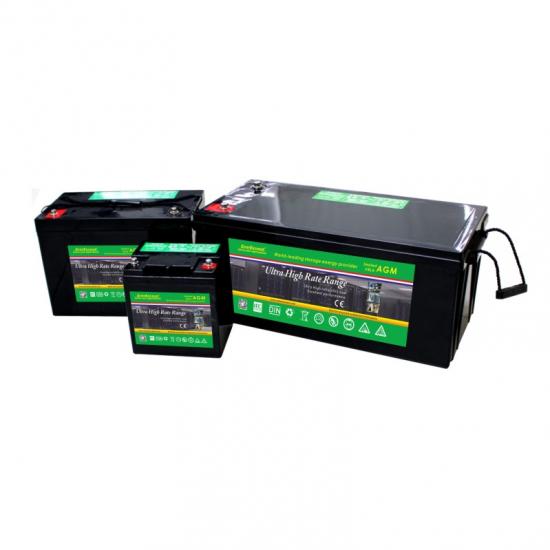

Ultra High Rate VRLA/AGM Battery for UPS and Data Center

Ultra High Rate VRLA/AGM Battery for UPS and Data Center

Technical features:

Good heat dissipation		Redundant capacity design		Energy saving
Applicable operating temperature range: -40°C to 70°C and perfect for using in hot temperature environment such as data center, UPS, telecom industry etc.		Proprietary fixed orifice plate pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance and higher capacity.		Lower initial investment cost, smaller room construction area, less floating charge current, lower operation and maintenance costs. Moreover no need of extra air conditioned room reduce electricity consumption to a great extent.
Long design life		High density		Easy installation
12 years design life @ 25˚C(77˚F);Slow self discharge rate: <3%/month.		Ultra high energy density designed, specially for high current and high power discharge UPS system.		Heavy duty threaded copper alloy terminals for ease of assembly, reduced maintenance and increased safety.
High reliability		Proprietary fixed pasting technology		High Protection
Advanced high tin low calcium lead alloy, minimizing plate grid corrosion and promotes long battery life.		Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance and higher capacity.		Fire-proof and explosion-proof, used for a single battery fire-resistance, low-voltage safety release ventilation system, in line with U.L. 94V0.

Advantages:

Constrution:

① Plates: Low calcium / high tin lead alloy, optimized for high corrosion resistance.; ② Separator: Highly porous glass micro-fibre separator, optimized for low internal resistance; ③ Standard Housing: Reinforced ABS (UL 94HB) container and cover;     Optional Housing: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%; ④ Terminals:Silver plated copper female insert for easy and safe assembly and maintenance free connection with Excellent conductivity; ⑤ Valve: Release gas in case of excess pressure & protects the cell against atmosphere.

●Uninterruptible Power Supply (UPS);  ●Switchgear;  ●Emergency lighting;  ●Overhead cranes;  ●Telecom;Alarm and security;  ●Industrial DC power

1. What’s An AGM Battery ?

A.The AGM battery uses fiberglass mats sandwiched between lead plates. It’s where the battery gets its name – Absorbent Glass Mat (AGM). The glass mat wicks the electrolyte solution, keeping it suspended in place, so it’s not free-flowing. Because the AGM is a sealed battery, there’s minimal to no off-gassing. Gases produced during the chemical reaction recombined with the electrolyte. And if there is excess gas (such as when the battery is overcharged), a vent releases it to maintain internal pressure.

B. How AGM vs Lead Acid Batteries Work

The AGM battery and the standard lead acid battery are technically the same when it comes to their base chemistry. They both use lead plates and an electrolyte mix of sulfuric acid and water and have a chemical reaction that produces hydrogen and oxygen as a byproduct.

C. It’s used in all types of applications — from marine to off-grid power systems and in advanced vehicles with significant power demands.

2. Maintenance requirements ?

The sealed lead acid battery (SLA battery) is a subset of lead acid batteries. It’s also known as a Valve Regulated Lead Acid battery (VRLA battery).

AGM batteries are maintenance free and can be placed in more enclosed areas because there is no exhaust except for occasional exhaust. It is suitable for various application scenarios and places that are difficult to maintain.3. Durability, Vibration And Shock Resistance

The AGM battery tends to be built harder than the flooded lead acid battery, as it originally served military and aviation use.

3. Mounting Flexibility And Spillage ?

The glass mat technology in the AGM battery makes it spill-proof and position insensitive. You can mount it in many configurations (just don’t turn it upside down).

4. Internal Resistance and Power Output ?

The AGM battery’s internal resistance is among the lowest of the various lead acid batteries. While a new flooded lead acid battery can have an internal resistance of 10-15%, a new AGM battery can be as low as 2%.

5. Charging Time ?

Low internal resistance also grants the AGM battery faster charging times.

6. Drainage depth ?

AGM batteries have an 80% discharge depth (DoD) and can limit their discharge depth to 100% during backup use

7. Temperature Tolerance ?

The AGM battery generally performs better in all temperatures and tends towards good Cold Cranking Amp (CCA) ratings.

The electrolyte that’s held in the glass mat doesn’t expand like a liquid while frozen. This makes AGM batteries resistant to cold weather damage.

8. Lifespan And Self-Discharge ?

AGM batteries generally last longer than standard lead acid batteries. Because of their low self-discharge rate

9.Can I Use AGM Or Lead Acid Batteries As A Battery Bank?

Yes.

Both the AGM lead acid deep cycle batteries can act as a battery bank and charge up with a solar panel.

An AGM battery bank would be easier to configure because they can lie on their sides.

They’re also maintenance-free.
