 |10-40kVA PowerChampion RM Series Rack Online UPS

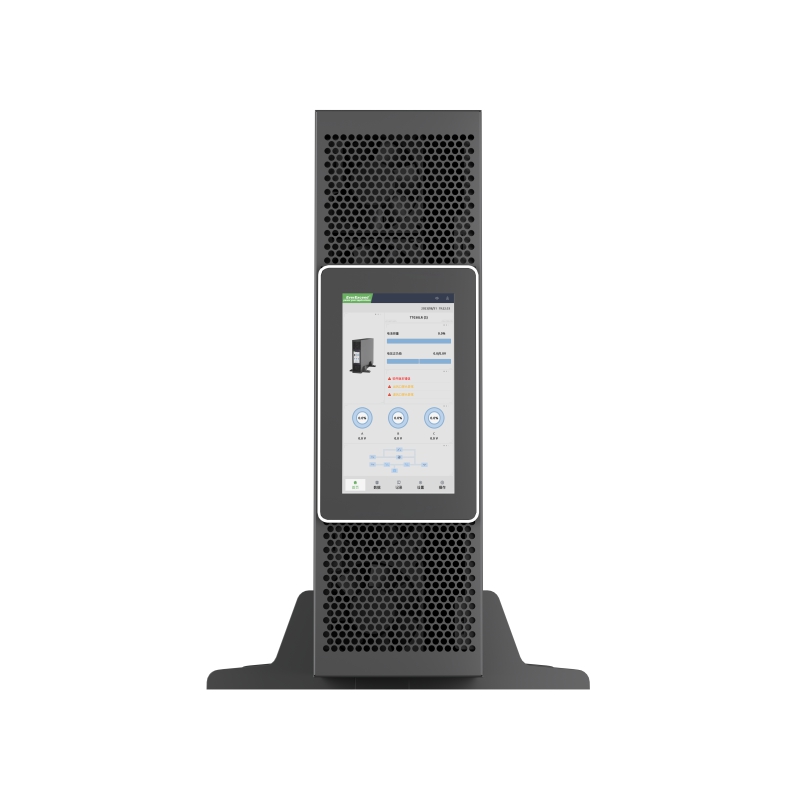

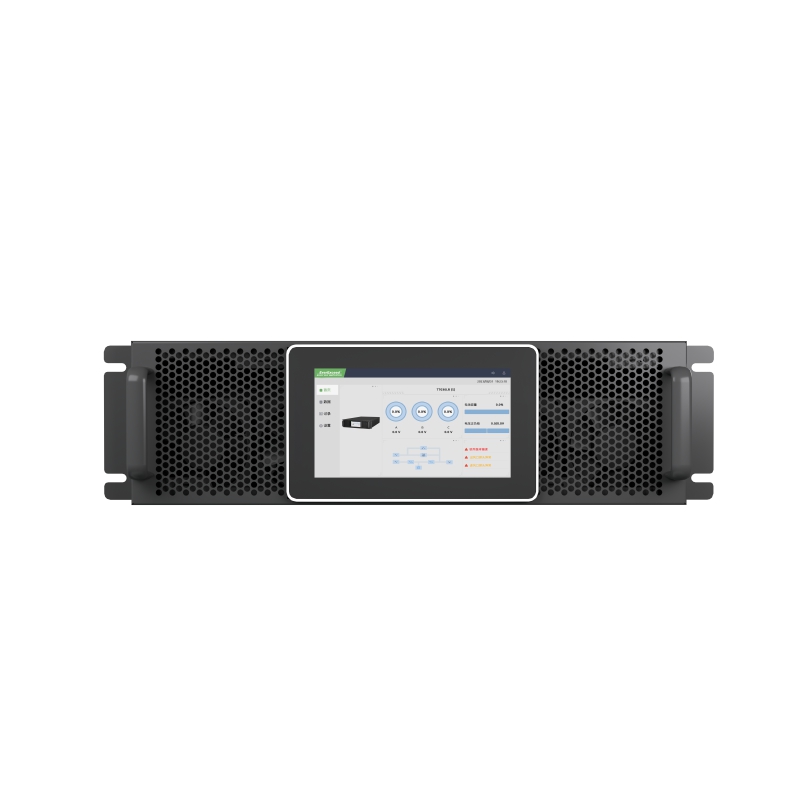

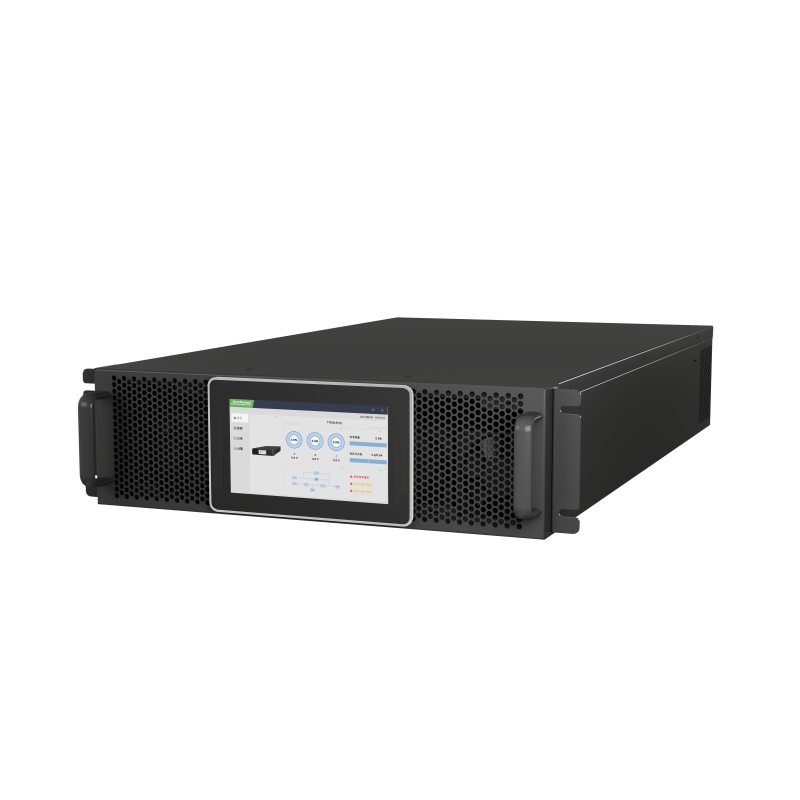

10-40kVA PowerChampion Rack mounted UPS
10-40kVA PowerChampion Rack mounted UPS 10-40kVA PowerChampion Rack mounted UPS 10-40kVA PowerChampion Rack mounted UPS 10-40kVA PowerChampion Rack mounted UPS

10-40kVA PowerChampion RM Series Rack Online UPS

10-40kVA PowerChampion RM Series Rack Online UPS

380/400/415VAC, 3:3


The PowerChampion RM Series Rack is double conversion online UPS with fully DSP controlled technology. With its flexible configuration of 3/3 and 3/1, compact design, it is the ideal choice for modern data center.

  • brand:

    EverExceed
inquiry now
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ

Technical features




Rack design

Smart display

Energy efficient

Rack design, compatible with 19* standard rack cabinet, convenient to be integrated with servers
 5.5" touch color LCD with graphic display, more information displayed and easier for customer to operate
 High efficiency operation in double conversion mode up to 98%.



Intelligent charging management

Flexible configuration

Friendly interface

The system itelligenty control the whole process of the charging and discharging, effectively improving the life time of the battery.
 The system can be configured to 3/3 and 3/1
 RS232,RS485, SNMP, Dry contacts, USB;Optional communication interface: Parallel kits

Application

IDC (Internet data Center), Network servers and workstations, Control system, Communication system, Office





MODEL PWR10L PWR15L PWR20L PWR25L PWR30L PWR40L
Power Rating  10KVA/10KW 15KVA/15KW 20KVA/20KW 25KVA/25KW 30KVA/30KW 40KVA/40KW
                Main
Input 3 P + N+ PE
Rate Voltage 380/400/415VAC (line-ine)
Rate Frequency 50/60Hz
Input Voltage Range 304~478Vac (line-ine),full load
228V~304Vac (line-ine), full load; 228V~304Vac (line-ine),derate from 75% to 100% load
Input Frequency Range 40Hz～70Hz
Input PF >0.99
Input THDi <4% (100% Linear Load) <3% (100% Linear Load)
Bypass
Rate Voltage 380/400/415Vac (line-ine)
Rate Frequency 50/60Hz
Input Voltage Range Selectable, -40%～+25%
Bypass Frequency Range Selectable, ±1Hz, ±3Hz, ±5Hz
Bypass Overload 125%, Long time; 130%, 10mins; 150%,1min; >150%,1s
Output
Rate Voltage 380/400/415Vac (line-ine)
Rate Frequency 50/60Hz
Output PF 1
Output THDu
<1% from 0% to 100% linear load
<5.5% full non-linear load according to IEC/EN62040-3
<1% from 0% to 100% linear load
<5% full non-linear load according to IEC/EN62040-3
Inverter Overload 110% for 1 hour; 125% for 10 min; 150% for 1min; >150% for 200ms
Battery
Battery Number ±240VDC
Charger Accuracy 1%
Charger Capacity up to 20% *Output power
Battery Cold Start Yes
Efficiency
AC Mode 95.0%max 95.5%max 96.0%max 96.0%max
Battery Mode 94.5%max 95%max 95.5%max 95.5%max
System
Display LED + LCD+Touch Screen
Interface RS232(only 10-25K), USB(only 40K), RS485, Programmable dry contact
Option SNMP, parallel kit SNMP, parallel kit, LBS
Environmental
Operation Temperature 0 ～ 40 ℃
Storage Temperature -40 ～ 70 ℃
Relative Humidity 0 ～ 95% Non condencing
Noise (1 meter) 65dB @ 100% load, 62dB @ 45% load
Phisical data
Dimension W*D*H (mm） 438*780*130 438*780*130 438*700*174 438*700*174
Weigh (kg) 25 30 41 41
